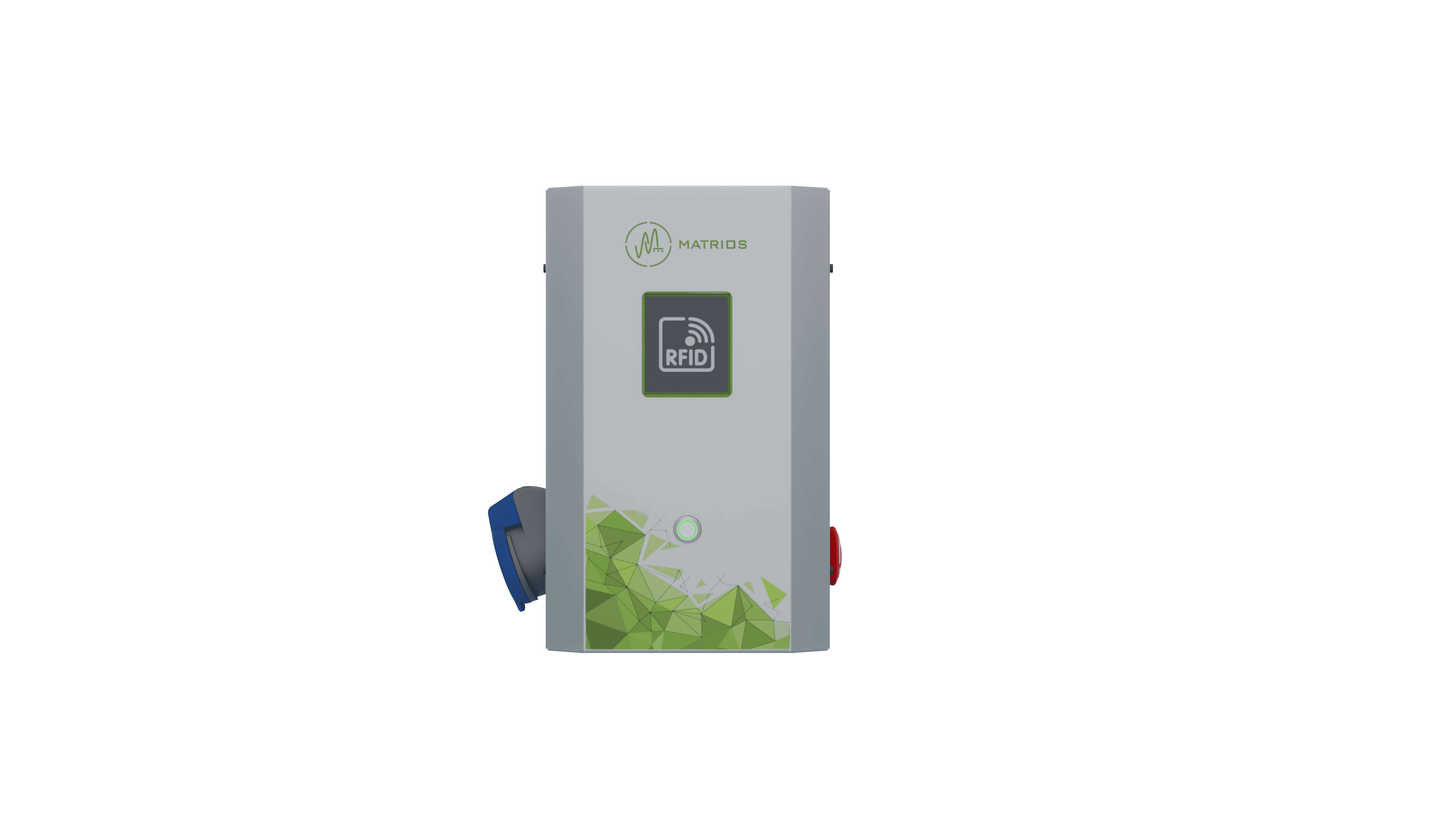

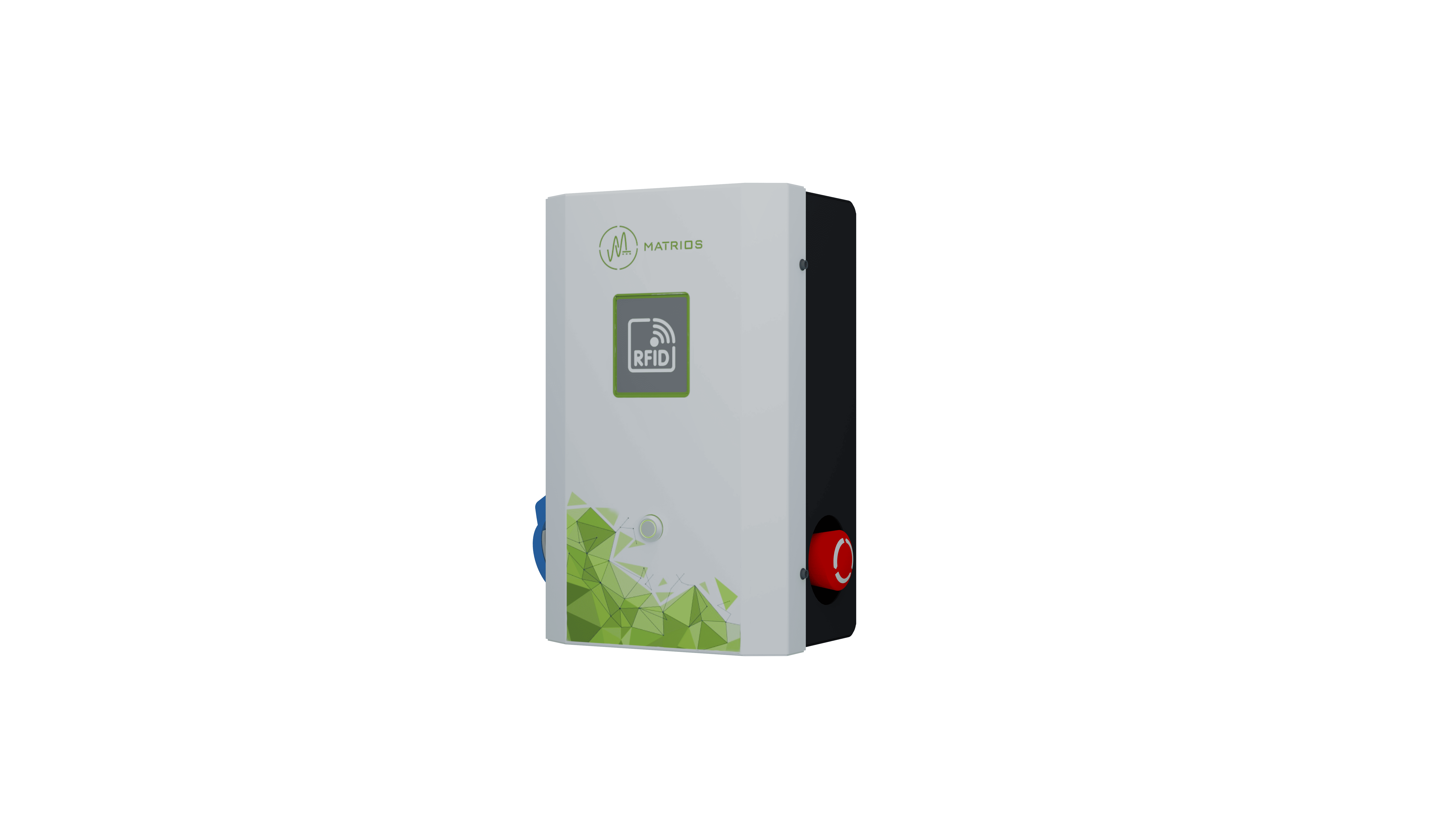

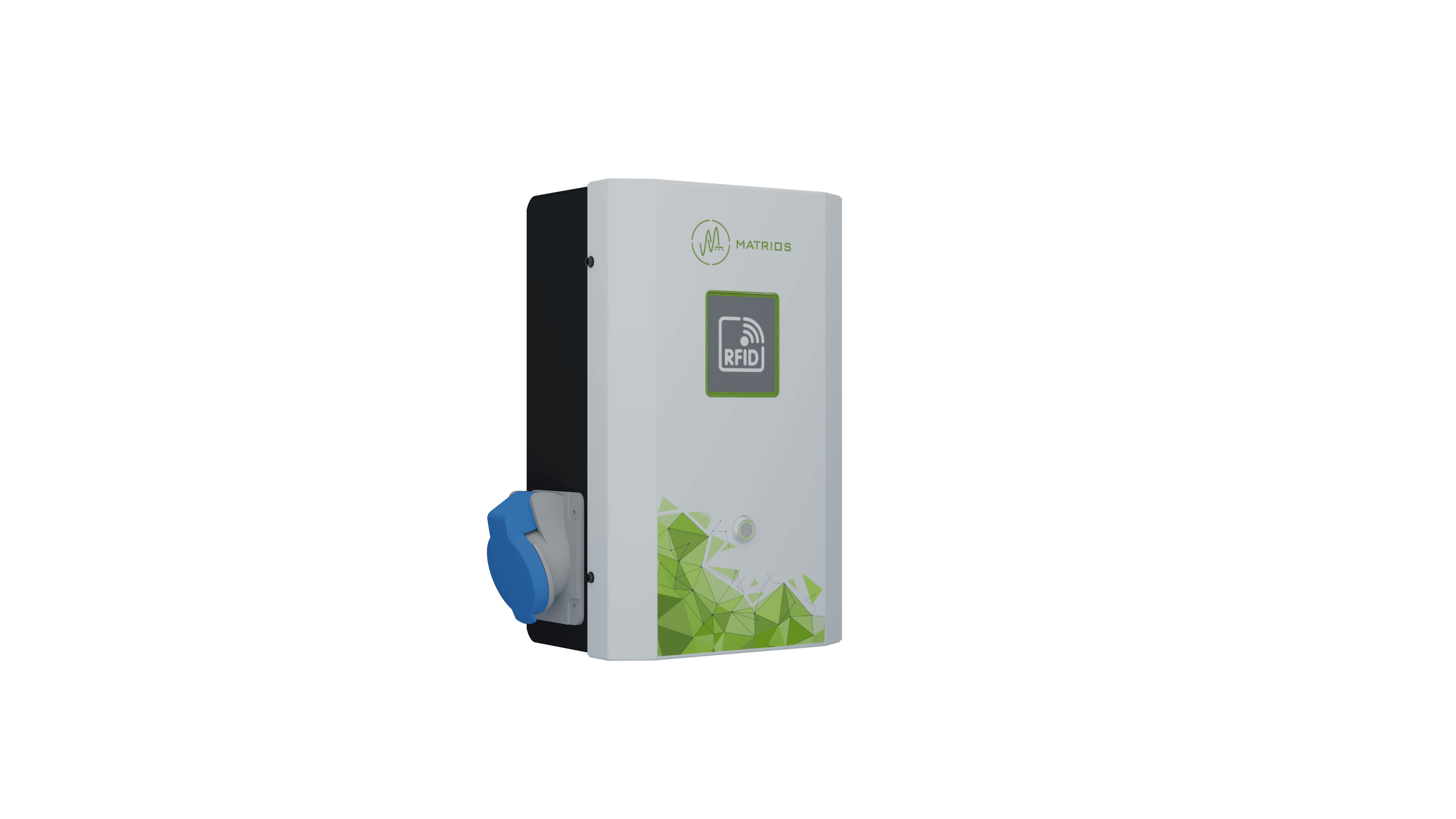

3.3 KW (AC Charger)

Our 3.3 KW AC EV Charger with multiway connectivity and multiple charging outputs having highly accurate metering capabilities compliant to world-class standards of EV communication protocols like OCPP1.6J.

  • OCPPJ-1.6 Compliant
  • Under & over current/voltage protection
  • Emergency Stop
  • Firmware over the air
  • Earth fault protection
  • In-built metering capabilities
  • Multi-way user connectivity (Wifi/LTE)
  • Authentication based on RFID scan
  • Configuration based on mobile application
  • User-friendly graphical display

Specifications Of The Product

Power upto 3.3kWs
Display 128x64 graphical display
Input Voltage 3 phase 415v
No. of Output 1
Output Current 16Amp per Connector
Output charging outlet Industrial Socket (3), Waterproof power socket (2)
Communication protocol OCPP1.6J
Communication network LTE/WiFi
Metering High accuracy class 1 meter
Protection Over/Under Voltage, Over Current, Short Circuit Protection, Earth Detection, Leakage Protection
Advance Features Mobile application, FOTA, Offline data logging
Charging Operations CMS web app and RFID scan code based
