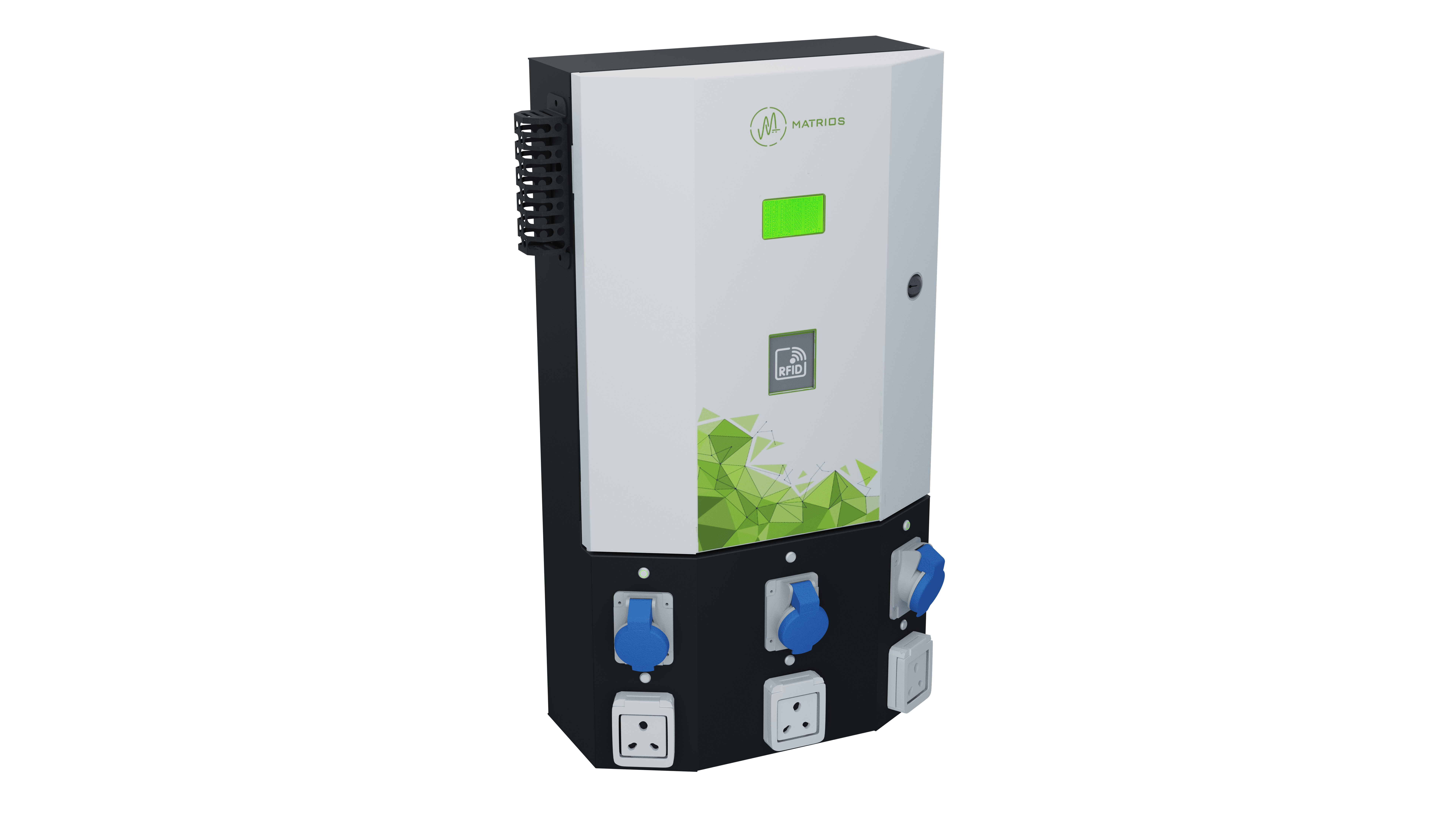

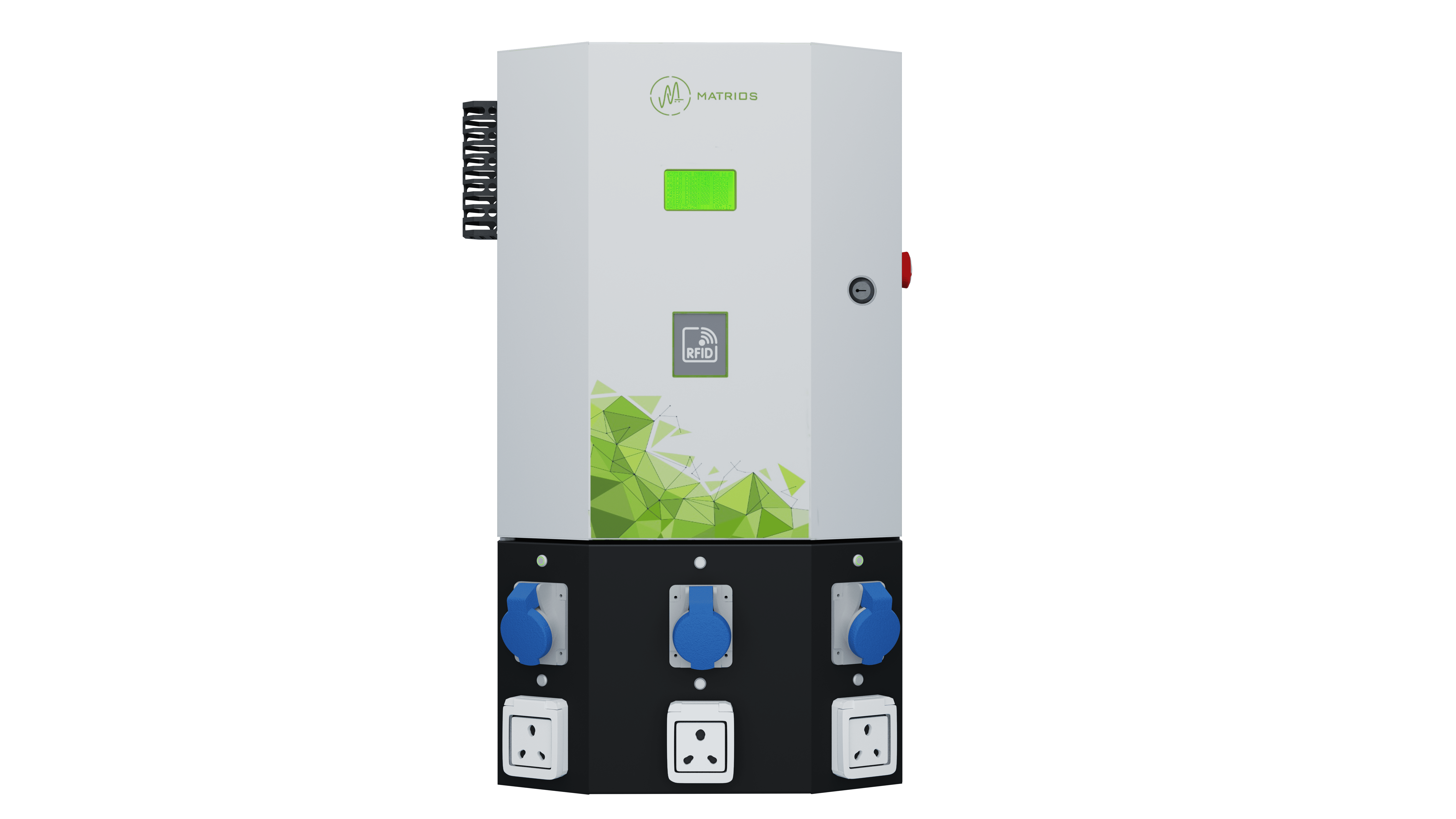

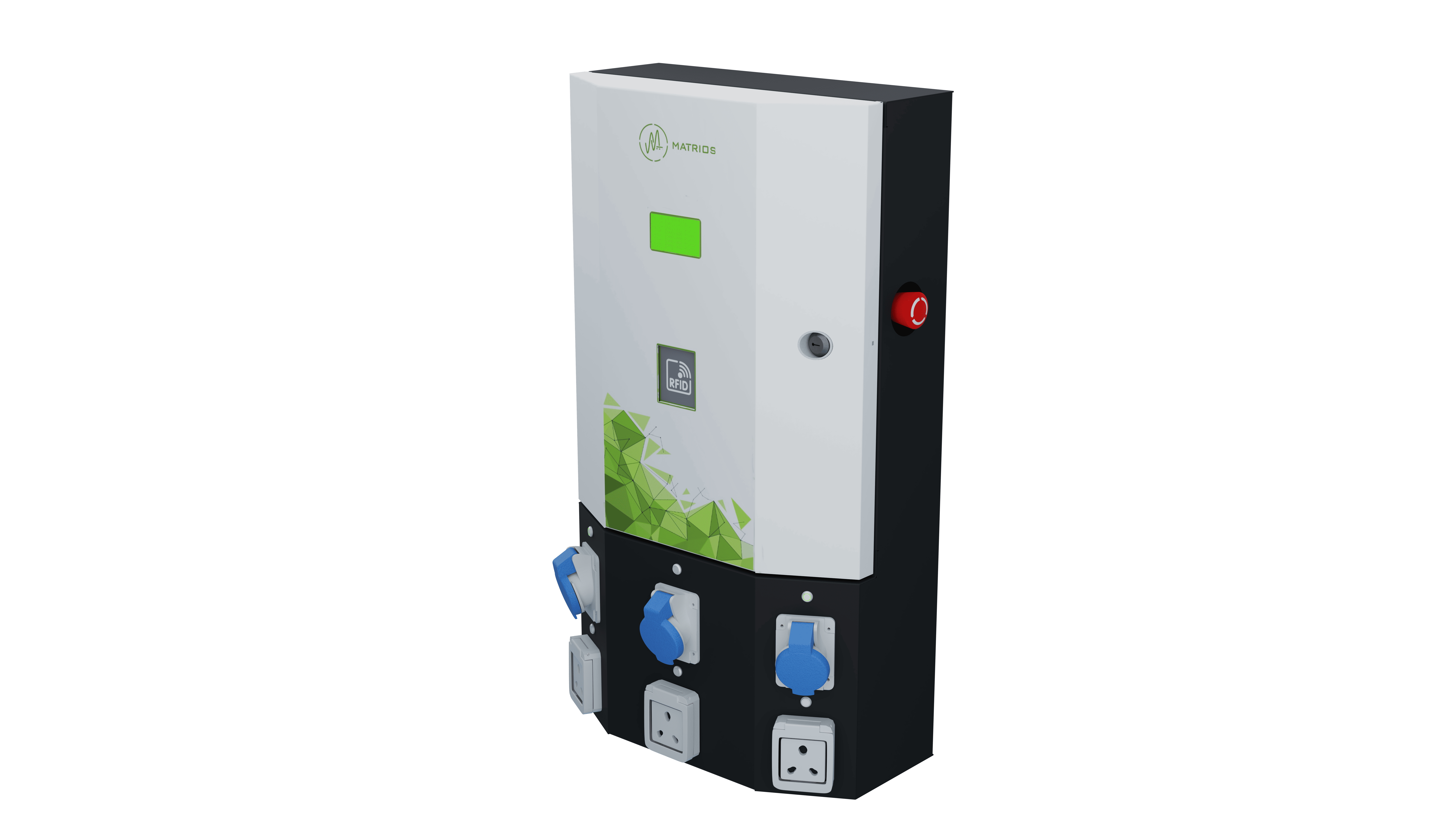

3.3 KW AC (6 Connectors)

Our 3.3 KW AC EY Charger with multiway connectirity and multiple charging outputs haring highly accurate metering capabilties compliant to world-class standards of EV communication protocols like OCPP1.6J. We are work bound to deilrer best serrice and managment solution for your needs.

  • OCPP 1.6J Compliant
  • Earth Fault Protection
  • Firmware Over-The-Air (FOTA)
  • Multi-Way User Connectivity (WiFi/LTE)
  • Configuration Based on Mobile Application
  • User-Friendly Graphical Display
  • Emergency Stop
  • In-Built Metering Capabilities
  • Authentication Based on RFID Scan

Specifications Of The Product

Power Output Up to 3.3 kW
Display 128x64 graphical display
Input Voltage 3 phase 415V
No. of Outputs 6
Output Current 16Amp per Connector
Output Charging Outlet Industrial Socket (3), Waterproof Power Socket (3)
Communication Protocol OCPP 1.6J
Communication Network LTE/WiFi
Metering High Accuracy Class 1 Meter
Protection Over/Under Voltage, Overcurrent, Short Circuit Protection, Earth Detection, Leakage Protection
Advanced Features Mobile Application, FOTA (Firmware Over-The-Air), Offline Data Logging
Charging Operations CMS Web, App and RFID Scan Code-Based
