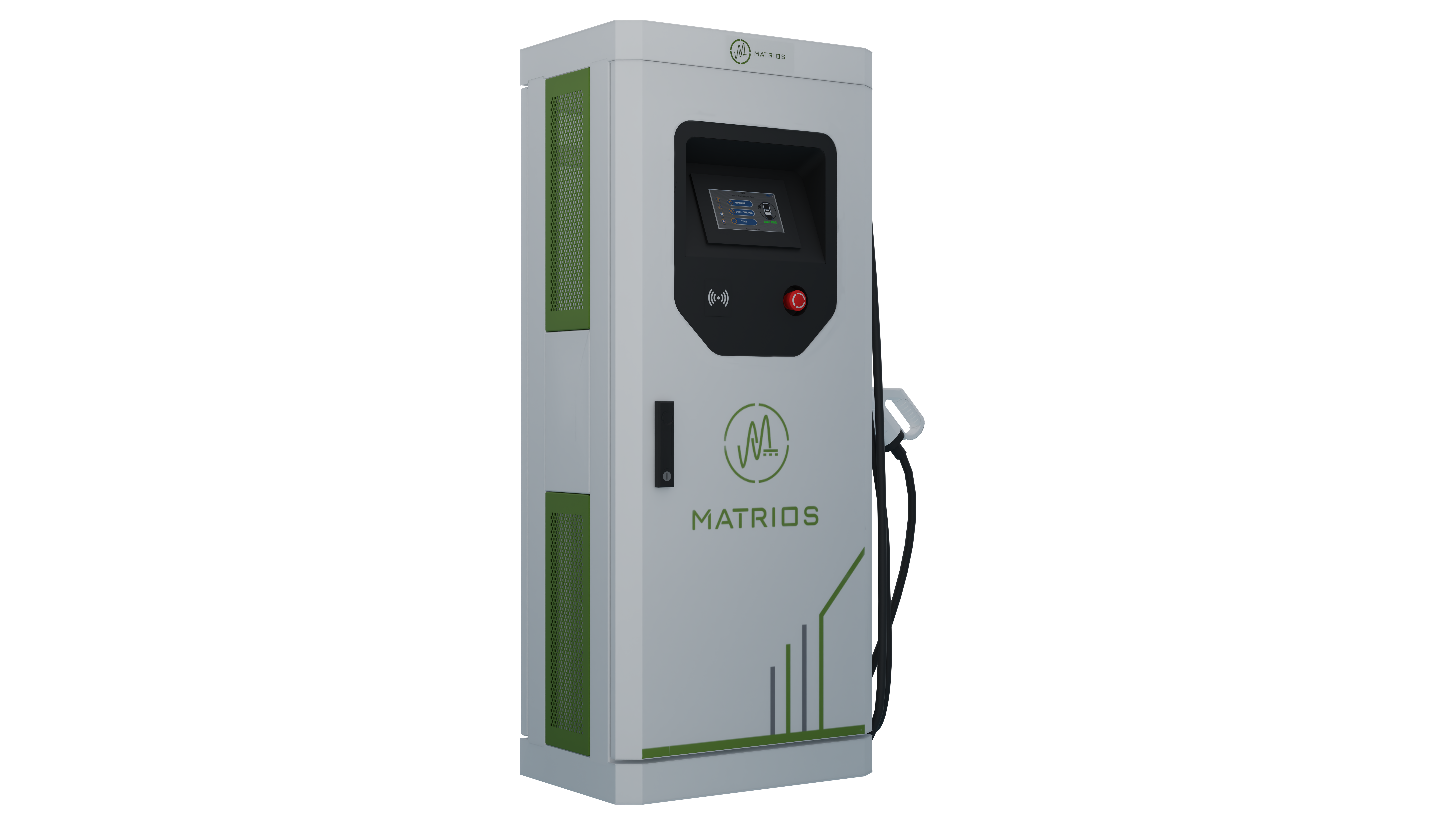

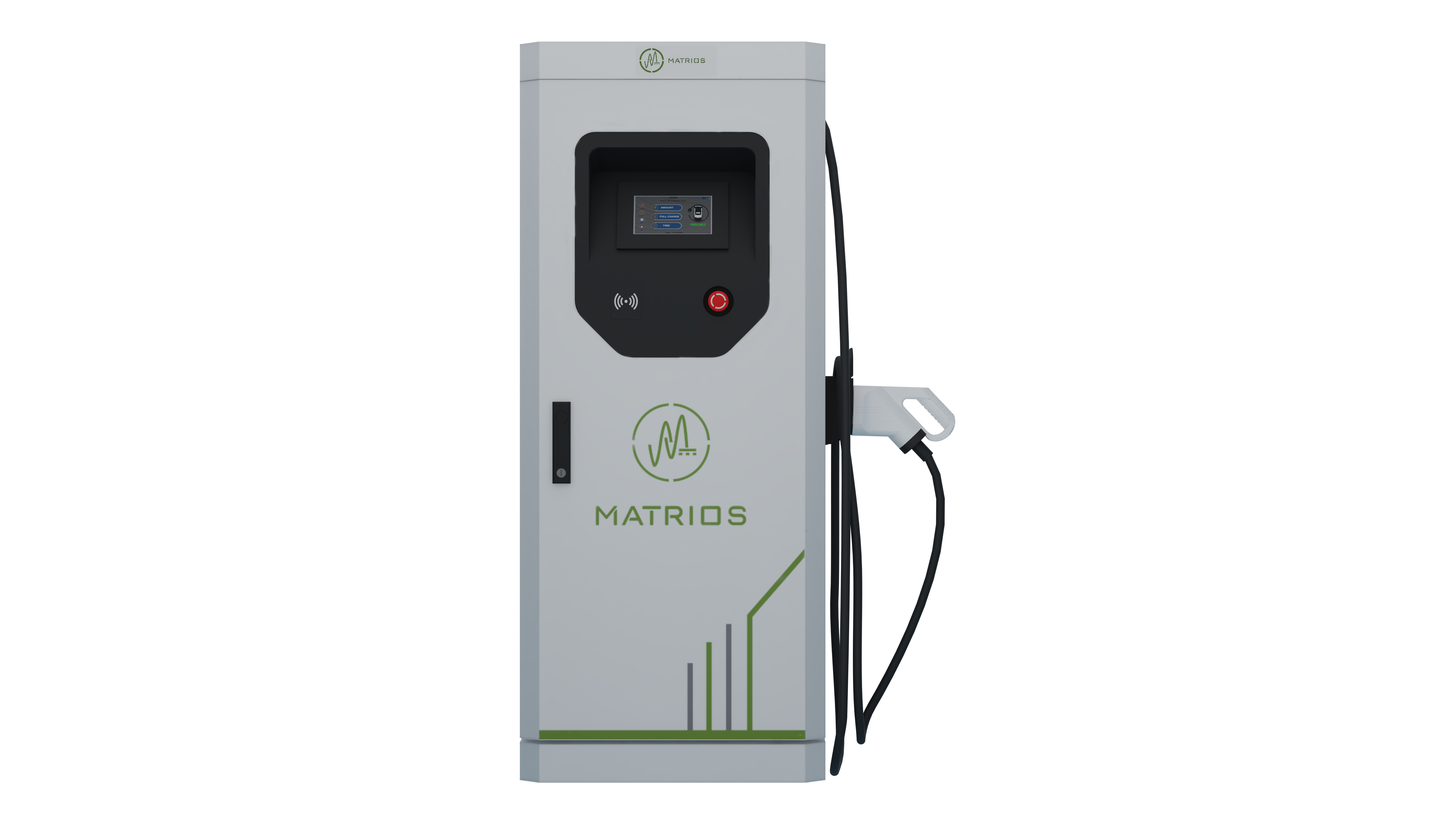

30 KW DC Charger (Single Gun)

Our 3OkW DC fast charger with OCPP 1.6, supporting CCS2 High-efficiency ( > 95%), compact design, Adranced safety features, and user-friendly interface. Ideal for public, commercial, or prirate charging applications.

OCPP 1.6J, ISO 15118, and DIN 70121 Compliant
High Accuracy Metering Capabilities
Multi-Way User Connectivity (WiFi/LTE/Ethernet)
Configuration Based on Mobile Application
Emergency Stop
Earth Fault Protection
Firmware Over-The-Air (FOTA)
Designed with 1000V Maximum Output
Under & Over Current/Voltage Protection
CCS2 Charging Connector
HMI Display for Improved Accessibility
Dynamic Load Management
Online/Offline Authentication Based on RFID Scan
Adaptable Voltage Range

Specifications Of The Product

Input Voltage Rating

3 Phase 260-530 V AC

Max. Input Current

60 Amp

Input Frequency

45-65 Hz

User Authentication

RFID, OCPP-Based Mobile Application Interface

Interface

Ethernet, WiFi, CSM

Number of Output Ports

1 CCS Type 2 Connector

Output Current

0-100 Amp

Output Voltage

100-1000 V DC

Efficiency

›95.5%

Protection

Over/Under Voltage, Overcurrent, Short Circuit Protection, Earth Detection, Surge Protection, Leakage Protection, Over Temperature Protection

Emergency Shut Down Button

Emergency Button

Energy Metering

Integrated Meter

Operating Temperature

-40°C to +75°C

Humidity

95% RH

Cooling Method

Fan

Altitude

No derating below 2000m. Above 2000m, the operating temperature decreases by 1°C for each additional 100m

Display

7" HMI Capacitive Touch Display

Memory Storage

Stores the Last 750 Event Logs

Advanced Features

Mobile Application, FOTA, Offline Data Logging, Smart Charging
